File: networks/csma/Host.ned
(no description)

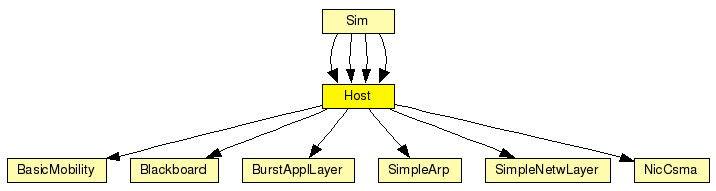

The following diagram shows usage relationships between modules, networks and channels. Unresolved module (and channel) types are missing from the diagram. Click here to see the full picture.
If a module type shows up more than once, that means it has been defined in more than one NED file.
BasicMobility | Basic module for all mobility modules. |
Blackboard | The Blackboard works as entity to enable inter layer / process communication. |
BurstApplLayer | Application layer to test lower layer implementations |
NicCsma | (no description) |
SimpleArp | (no description) |
SimpleNetwLayer | Basic class for the network layer |
If a module type shows up more than once, that means it has been defined in more than one NED file.
Sim | (no description) |
Sim | (no description) |
Sim | (no description) |
Sim | (no description) |
Name | Direction | Description |
---|---|---|
radioIn | input | gate for sendDirect |
Name | Type | Description |
---|---|---|
blackboard.coreDebug | numeric const | debug switch for core framework |
mobility.coreDebug | numeric const | debug switch for the core framework |
mobility.x | numeric const | x coordinate of the nodes' position (-1 = random) |
mobility.y | numeric const | y coordinate of the nodes' position (-1 = random) |
arp.debug | bool | |
appl.debug | bool | debug switch |
appl.headerLength | numeric const | length of the application message header (in bits) |
appl.burstSize | numeric const | size of the burst |
net.debug | numeric const | debug switch for the core framework |
net.headerLength | numeric const | length of the network packet header (in bits) |
nic.mac.debug | bool | debug switch |
nic.mac.busyRSSI | numeric const | level at which we consider medium busy |
nic.mac.slotDuration | numeric const | how long is a slot? |
nic.mac.difs | numeric const | maximum time between a packet and its ack |
nic.mac.maxTxAttempts | numeric const | maximum number of transmission attempts |
nic.mac.headerLength | numeric const | length of MAC header |
nic.mac.queueLength | numeric const | length of the MAC queue |
nic.mac.defaultChannel | numeric const | default channel |
nic.mac.bitrate | numeric const | bit rate |
nic.mac.contentionWindow | numeric const | contention window |
nic.decider.debug | bool | debug switch |
nic.decider.snrThresholdLevel | numeric | |
nic.snrEval.debug | bool | debug switch |
nic.snrEval.publishRSSIAlways | bool | if false, the RSSI will not be published during the reception of a frame |
nic.snrEval.transmitterPower | numeric | |
nic.snrEval.headerLength | numeric const | |
nic.snrEval.carrierFrequency | numeric | |
nic.snrEval.thermalNoise | numeric | |
nic.snrEval.pathLossAlpha | numeric | |
nic.snrEval.sensitivity | numeric | |
nic.radio.debug | bool | |
nic.radio.swSleep | numeric const | time parameters, how long does it take to switch to sleep mode |
nic.radio.swSend | numeric const | switch to send mode |
nic.radio.swRecv | numeric const | switch to recv mode |
module Host gates: in: radioIn; // gate for sendDirect submodules: blackboard: Blackboard; display: "p=200,75;b=30,25"; mobility: BasicMobility; display: "p=200,150;b=30,25"; arp: SimpleArp; display: "p=200,225;b=30,25"; appl: BurstApplLayer; display: "p=90,50;b=100,20,rect"; net: SimpleNetwLayer; display: "p=90,100;b=100,20,rect"; nic: NicCsma; display: "p=90,150;b=100,20,rect"; connections: nic.uppergateOut --> net.lowergateIn; nic.uppergateIn <-- net.lowergateOut; nic.upperControlOut --> net.lowerControlIn; net.uppergateOut --> appl.lowergateIn; net.uppergateIn <-- appl.lowergateOut; net.upperControlOut --> appl.lowerControlIn; radioIn --> nic.radioIn; display: "p=10,10;b=250,250,rect;o=white"; endmodule
