Compound Module GENic

File: networks/gilbert-elliot/GENic.ned

(no description)

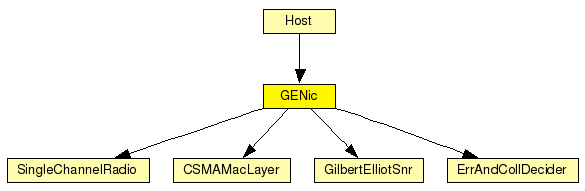

Usage diagram:

The following diagram shows usage relationships between modules, networks and channels. Unresolved module (and channel) types are missing from the diagram. Click here to see the full picture.

Contains the following modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

CSMAMacLayer	CSMA MAC protocol
ErrAndCollDecider	Decider module to use with digital channel modules like GilbertElliotSnr
GilbertElliotSnr	Gilbert-Elliot signal-noise evaluator
SingleChannelRadio	(no description)

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

Host	(no description)

Gates:

Name	Direction	Description
radioIn	input	to receive AirFrames
uppergateIn	input	from upper layers
uppergateOut	output	to upper layers
upperControlOut	output	control connection

Unassigned submodule parameters:

Name	Type	Description
mac.debug	bool	debug switch
mac.busyRSSI	numeric const	level at which we consider medium busy
mac.slotDuration	numeric const	how long is a slot?
mac.difs	numeric const	maximum time between a packet and its ack
mac.maxTxAttempts	numeric const	maximum number of transmission attempts
mac.headerLength	numeric const	length of MAC header
mac.queueLength	numeric const	length of the MAC queue
mac.defaultChannel	numeric const	default channel
mac.bitrate	numeric const	bit rate
mac.contentionWindow	numeric const	contention window
decider.debug	bool	debug switch
decider.snrThresholdLevel	numeric
snrEval.debug	bool	debug switch
snrEval.transmitterPower	numeric
snrEval.headerLength	numeric const
snrEval.carrierFrequency	numeric
snrEval.thermalNoise	numeric
snrEval.pathLossAlpha	numeric
snrEval.sensitivity	numeric
snrEval.meanGood	numeric
snrEval.meanBad	numeric
radio.debug	bool
radio.swSleep	numeric const	time parameters, how long does it take to switch to sleep mode
radio.swSend	numeric const	switch to send mode
radio.swRecv	numeric const	switch to recv mode

Source code:

module GENic
    gates:
	in: radioIn; // to receive AirFrames
        in: uppergateIn; // from upper layers
        out: uppergateOut; // to upper layers
	out: upperControlOut; // control connection

     submodules:
	mac: CSMAMacLayer;
            display: "p=60,50;b=32,30;i=prot2";
        decider: ErrAndCollDecider;
            display: "p=68,100;b=16,16;i=box2_s;o=white";
        snrEval: GilbertElliotSnr;
            display: "p=60,150;b=32,30;i=prot3";
	radio: SingleChannelRadio
	display: "p=200,30;b=30,25";

    connections:
        radioIn --> snrEval.radioIn;

        decider.uppergateOut --> mac.lowergateIn display "m=m,50,50,75,0";
        snrEval.uppergateIn <-- mac.lowergateOut display "m=m,25,0,25,0";
        snrEval.uppergateOut --> decider.lowergateIn display "m=m,73,0,50,50";

	snrEval.upperControlOut --> mac.lowerControlIn;
        mac.uppergateOut --> uppergateOut;

	mac.upperControlOut --> upperControlOut;
        mac.uppergateIn <-- uppergateIn;

    display: "p=10,10;b=101,180,rect;o=white";
endmodule
