Compound Module BaseStationHost

File: networks/baseStationNet/BaseStationHost.ned

The BaseStationHost is a compound module that implements a test base station. The test base station contains the PollApplLayer which periodically polls all clients in the network.

Author: Daniel Willkomm

Usage diagram:

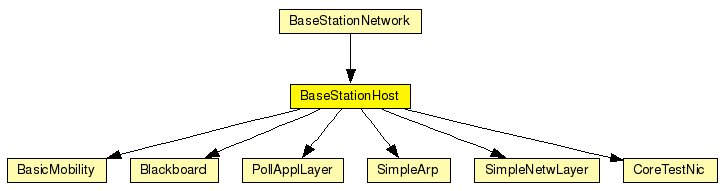

The following diagram shows usage relationships between modules, networks and channels. Unresolved module (and channel) types are missing from the diagram. Click here to see the full picture.

Contains the following modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

BasicMobility	Basic module for all mobility modules.
Blackboard	The Blackboard works as entity to enable inter layer / process communication.
CoreTestNic	The nic (network interface card) is a compound module that contains the MAC and PHY of a host within the Mobility Framework
PollApplLayer	Application layer to test centralized scenarios
SimpleArp	(no description)
SimpleNetwLayer	Basic class for the network layer

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

BaseStationNetwork

A WLAN like base station controlled network

Parameters:

Name	Type	Description
logName	string	TKEnv display name
numClients	numeric const	number of clients in the network

Gates:

Name	Direction	Description
radioIn	input	gate for sendDirect

Unassigned submodule parameters:

Name	Type	Description
blackboard.coreDebug	numeric const	debug switch for core framework
mobility.coreDebug	numeric const	debug switch for the core framework
mobility.x	numeric const	x coordinate of the nodes' position (-1 = random)
mobility.y	numeric const	y coordinate of the nodes' position (-1 = random)
appl.debug	bool	debug switch
appl.headerLength	numeric const	length of the application message header (in bits)
appl.pollTimeout	numeric const	timeout for poll messages
appl.broadcastInterval	numeric const	time between bradcast messages in seconds
arp.debug	bool
net.debug	numeric const	debug switch for the core framework
net.headerLength	numeric const	length of the network packet header (in bits)
nic.mac.debug	bool	debug switch
nic.mac.headerLength	numeric const	level at which we consider medium busy
nic.mac.queueLength	numeric const	length of the MAC queue
nic.mac.bitrate	numeric const	bit rate in bit/s
nic.mac.defaultChannel	numeric const	default channel
nic.decider.coreDebug	bool	debug switch
nic.snrEval.coreDebug	bool	debug switch
nic.snrEval.headerLength	numeric const
nic.radio.debug	bool
nic.radio.swSleep	numeric const	time parameters, how long does it take to switch to sleep mode
nic.radio.swSend	numeric const	switch to send mode
nic.radio.swRecv	numeric const	switch to recv mode

Source code:

module BaseStationHost
    parameters:
		logName: string, //TKEnv display name
        numClients: numeric const; // number of clients in the network
    gates:
    	in: radioIn; // gate for sendDirect
    submodules:
        blackboard: Blackboard;
            display: "p=130,70;b=25,25;o=black";
        mobility: BasicMobility;
            display: "p=130,140;i=cogwheel2";
        appl: PollApplLayer;
	    parameters:
		numClients = numClients;
            display: "b=35,26;p=60,50;i=app";
        arp: SimpleArp;
            display: "p=200,225;b=30,25";
        net: SimpleNetwLayer;
            display: "b=32,30;p=60,108;i=prot1";
        nic: CoreTestNic;
            display: "b=32,30;p=60,166;i=iface";
    connections:
        nic.uppergateOut --> net.lowergateIn;
        nic.uppergateIn <-- net.lowergateOut;
	    nic.upperControlOut --> net.lowerControlIn;

        net.uppergateOut --> appl.lowergateIn;
        net.uppergateIn <-- appl.lowergateOut;
	    net.upperControlOut --> appl.lowerControlIn;

	    radioIn --> nic.radioIn;

    display: "p=10,10;b=180,200,rect;o=white";
endmodule
