Compound Module ClientHost

File: networks/baseStationNet/ClientHost.ned

The ClientHost is a compound module that implements a very simple mobile client. It only consists of basic modules and the ClientApplLayer.

Author: Daniel Willkomm

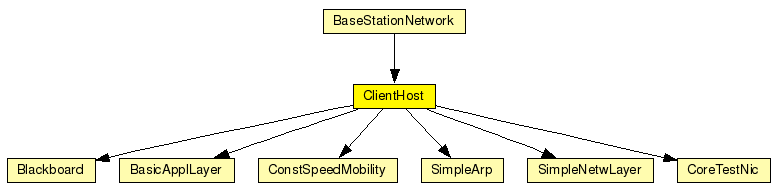

Usage diagram:

The following diagram shows usage relationships between modules, networks and channels. Unresolved module (and channel) types are missing from the diagram. Click here to see the full picture.

Contains the following modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

BasicApplLayer	Basic class for the application layer
Blackboard	The Blackboard works as entity to enable inter layer / process communication.
ConstSpeedMobility	Controls all movement related things of a host
CoreTestNic	The nic (network interface card) is a compound module that contains the MAC and PHY of a host within the Mobility Framework
SimpleArp	(no description)
SimpleNetwLayer	Basic class for the network layer

Used in compound modules:

If a module type shows up more than once, that means it has been defined in more than one NED file.

BaseStationNetwork

A WLAN like base station controlled network

Parameters:

Name	Type	Description
logName	string	TKEnv display name
applLayer	string	application layer type

Gates:

Name	Direction	Description
radioIn	input	gate for sendDirect

Unassigned submodule parameters:

Name	Type	Description
blackboard.coreDebug	numeric const	debug switch for core framework
mobility.coreDebug	bool	core debug switch
mobility.debug	bool	debug switch
mobility.speed	numeric const	spped of the host (in m/s)
mobility.updateInterval	numeric const	time interval to update the hosts position
mobility.x	numeric const	x starting point of the node (-1 = random)
mobility.y	numeric const	y starting point of the node (-1 = random)
appl.debug	bool	debug switch
appl.headerLength	numeric const	length of the application message header (in bits)
arp.debug	bool
net.debug	numeric const	debug switch for the core framework
net.headerLength	numeric const	length of the network packet header (in bits)
nic.mac.debug	bool	debug switch
nic.mac.headerLength	numeric const	level at which we consider medium busy
nic.mac.queueLength	numeric const	length of the MAC queue
nic.mac.bitrate	numeric const	bit rate in bit/s
nic.mac.defaultChannel	numeric const	default channel
nic.decider.coreDebug	bool	debug switch
nic.snrEval.coreDebug	bool	debug switch
nic.snrEval.headerLength	numeric const
nic.radio.debug	bool
nic.radio.swSleep	numeric const	time parameters, how long does it take to switch to sleep mode
nic.radio.swSend	numeric const	switch to send mode
nic.radio.swRecv	numeric const	switch to recv mode

Source code:

module ClientHost
    parameters:
    logName: string, //TKEnv display name
        applLayer: string; //application layer type

    gates:
    in: radioIn; // gate for sendDirect

    submodules:
        blackboard: Blackboard;
            display: "p=130,70;b=25,25;o=black";
        mobility: ConstSpeedMobility;
            display: "p=130,140;i=cogwheel2";
        appl: applLayer like BasicApplLayer;
            display: "b=35,26;p=60,50;i=app";
        arp: SimpleArp;
            display: "p=200,225;b=30,25";
        net: SimpleNetwLayer;
            display: "b=32,30;p=60,108;i=prot1";
        nic: CoreTestNic;
            display: "b=32,30;p=60,166;i=iface";
    connections:
        nic.uppergateOut --> net.lowergateIn;
        nic.uppergateIn <-- net.lowergateOut;
	    nic.upperControlOut --> net.lowerControlIn;

        net.uppergateOut --> appl.lowergateIn;
        net.uppergateIn <-- appl.lowergateOut;
	    net.upperControlOut --> appl.lowerControlIn;

    	radioIn --> nic.radioIn;

    display: "p=10,10;b=180,200,rect;o=white";
endmodule
